Note that the starter codebase for these labs picks up where the labs from Catalyst Core left off. If you have a local project as set up in these labs, you can skip this lab and simply start the dev server in your existing example project:

pnpm run dev

Introduction

In this lab, you’ll set up a new Catalyst project with Makeswift enabled.

In this lab, you will:

  • Create a new Catalyst storefront and Makeswift site
  • Install Catalyst and run a local dev server

Prerequisites

  • A BigCommerce sandbox store or trial store, or a full production store, with an available storefront seat
  • A control panel user with the following permissions: “Create Store-level API accounts,” “Install applications,” “Launch applications”, “Create Channels” (Learn about high-risk permissions)
  • A command-line interface on your local machine
  • Node.js 24 or later
  • The pnpm package manager
  • Git CLI

For following along in the code in future lessons, it’s also helpful to make sure you have a code editor, like VS Code, to open your Makeswift project once installed.

Node Version Manager (nvm) is an alternative way to install Node.js and allows you to install and use different versions.

With nvm installed, you can install a specific version:

nvm install 22

… and switch to the Node.js runtime of any version you have installed:

nvm use 22

Whether you use nvm or install Node.js via another method, make sure you are running a compatible version:

node -v

Step 1: Create a Catalyst Storefront

  1. Log into your BigCommerce store control panel.
  2. Navigate to Channel Manager (or Channels) and Create channel.
  3. In the list of channel types, choose “Create” next to the “Catalyst” type.
  4. Enter a storefront name, select “Use sample data,” and click “Create” to finalize the storefront.

Once the provisioning process is begun, you will need to wait for the initial deployment to complete.

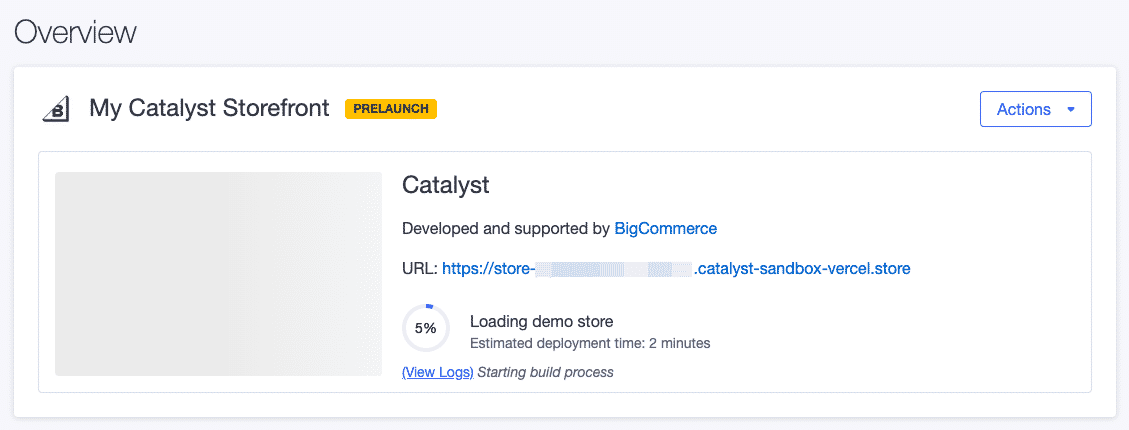

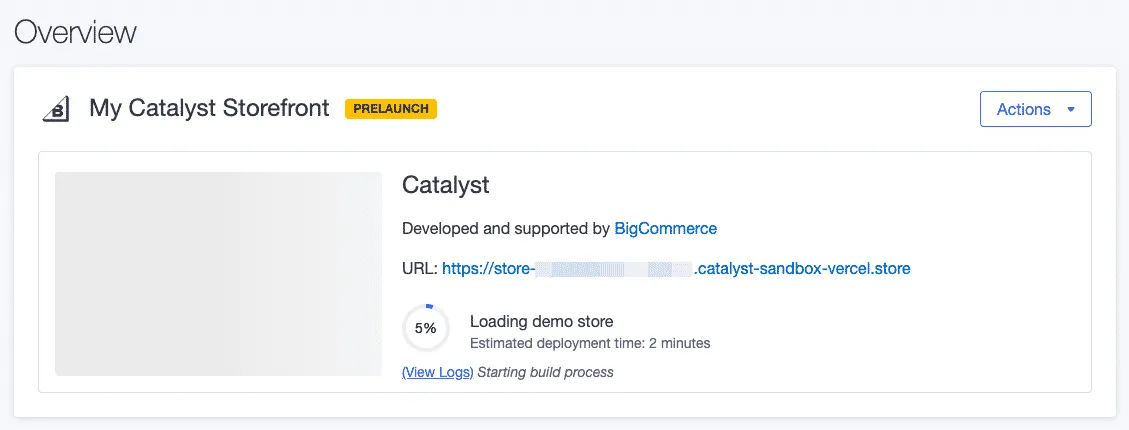

A Catalyst deployment in progress

Proceed with the following steps after deployment is complete.

  1. Click the “View storefront” button to view your hosted preview storefront.
  2. Click the “Edit in Makeswift” button to launch the Makeswift editor and confirm that you are able to edit your pages.

Note that you can return to the storefront overview page at any time by navigating to Channel Manager (or Channels) in your control panel and clicking on the Catalyst storefront channel.

Step 2: Install the Catalyst Project

Rather than start your custom code from scratch, you’ll be starting from a Catalyst codebase that already has certain boilerplate in place, in preparation for subsequent labs.

  1. Run the following command, replacing the path to the working directory with your own path.
corepack enable pnpm && pnpm dlx create-next-app@latest -e https://github.com/bigcommerce-edu/lab-catalyst-makeswift-faqs/tree/e-makeswift-start /path/to/working/directory

Note that we are running the installer with a specific gh-ref, rather than using the quick start command shown in the control panel.

Troubleshooting

The pnpm command is unrecognized.

In some environments where file permissions are highly restricted, you may need to prepend corepack to the use of pnpm commands (for example, corepack pnpm dlx create-next-app@latest …)

Troubleshooting

I receive interactive prompts.

The standard interactive flow for creating a new Next.js app will be initiated if the -e option isn’t recognized to provision from an existing “example” project. A brand new Next.js project isn’t what we’re after, so try manually cloning the starting state of the project repo:

git clone --branch e-makeswift-start git@github.com:bigcommerce-edu/lab-catalyst-makeswift-faqs.git /path/to/working/directory
cd /path/to/working/directory
pnpm install
  1. Run the following commands.
cd /path/to/working/directory
pnpm dlx @bigcommerce/create-catalyst@1.0.1 init

You will eventually be presented with the BigCommerce device authorization URL - https://login.bigcommerce.com/device/connect - and a unique code.

  1. Press Enter or manually browse to the given URL and log into your BigCommerce account.
  2. If you have multiple stores associated with your account, choose the store you want to associate with your Catalyst project.
  3. Enter the code from your command line output, and click “Next.”
  4. Allow the required permissions.

With authorization completed, back at the command line, there will be new installation steps to complete.

  1. Respond to the prompt “Would you like to create a new channel?” with “No.”
  2. Select the storefront channel you previously created in the control panel.

The completion of the installation may take a few minutes. The installer will install the Catalyst code files into your local project, install all npm dependencies, and configure your store information and credentials.

Step 3: Run the Dev Server

  1. Navigate to the new project working directory.
cd /path/to/catalyst/project
  1. Run the dev server.
pnpm run dev
  1. Browse to the URL displayed in the command line output. (Usually http://localhost:3000)

Provided that you chose to install sample data when creating your Catalyst storefront, you should see a fully populated storefront home page. Your local site should be nearly identical to your hosted preview environment, although as previously noted, there may be differences between the installed codebase and the deployed preview.

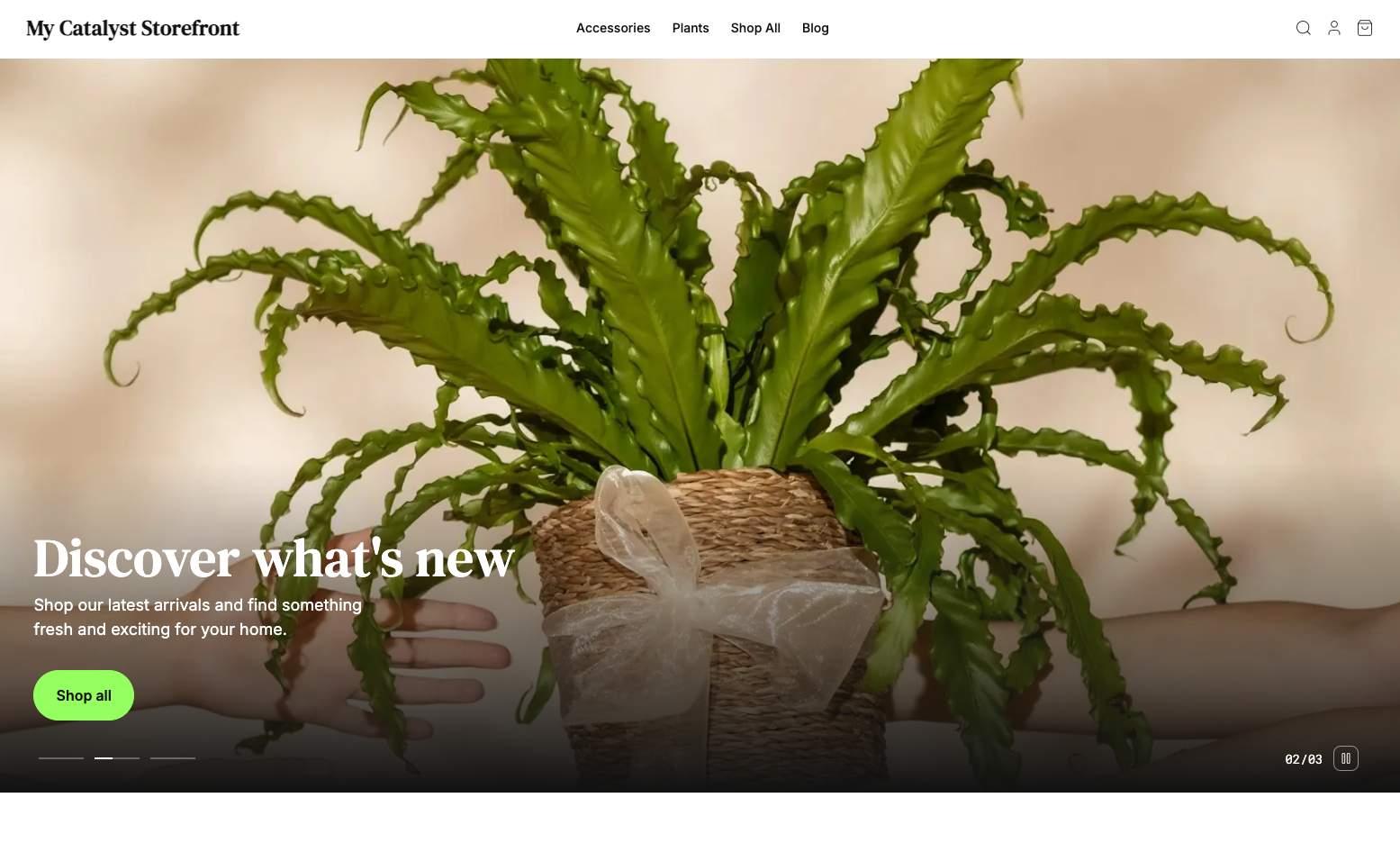

Example of a fresh local site

  1. If you are not still logged in the Makeswift editor, return to Channel Manager (or Channels) in your BigCommerce control panel, click on your storefront channel, and click”Edit in Makeswift.”
  2. In the Makeswift editor, use the site switcher in the upper left corner to switch to the “Dev” site (for example, “My Catalyst Storefront (Dev)”) and confirm that the localhost site successfully loads in the editor.

Troubleshooting

If you encounter an error while starting the dev server related to an issue finding a matching keyid, you may need to upgrade a pre-existing _corepack_version.

npm install -g corepack@latest

Step 4: Examine the Local Configuration

  1. Open the file .env.local in your new project and observe the environment variables that have been created by the installer.
VariableDescription
AUTH_SECRETA secret value used for Auth.js authenticated session management
BIGCOMMERCE_STORE_HASHThe hash of the BigCommerce store this project is connected to
BIGCOMMERCE_CHANNEL_IDThe ID of the new storefront channel that was created in your store. This new channel has the type “storefront” and the platform “catalyst”.
BIGCOMMERCE_STOREFRONT_TOKENThis GraphQL Storefront API token that Catalyst uses for its interactions with the BigCommerce platform.
ENABLE_ADMIN_ROUTEEnables the convenience URL path /admin on the storefront, which will direct you to your store’s control panel
TURBO_REMOTE_CACHE_SIGNATURE_KEYA key related to Turborepo, a tool used by Catalyst for optimizing building within the monorepo
MAKESWIFT_SITE_API_KEYThe API key of the Makeswift dev site
  1. Browse to the file .catalyst in your project and observe the variables created here.
VariableDescription
storeHashThe same store hash stored in .env.local
accessTokenA BigCommerce REST API token generated during the device auth flow

Unlike the values in .env.local, the values in .catalyst are only used by the CLI installer, not by the storefront application itself, and so these values do not correspond to any environment configuration that must be set up in deployment environments.

  1. Browse to the /admin path on your local storefront to visit your BigCommerce control panel.

The Local Dev Server and Cache

At various points while working in your local project, you may need to restart your dev server or clear the Next.js or Turborepo caches. Below is an example set of steps to do all three.

  1. Stop the local dev server (CTRL-C at the command line).
  2. Clear the contents of the Next.js cache directory. This is located at core/.next/cache in your project working directory.
  3. Clear the contents of the Turborepo cache directory. This is located at .turbo/cache in your project working directory.
  4. Start the dev server again.
pnpm run dev

Make sure only to clear a given cache when necessary. It is generally not necessary to clear the Turborepo cache to make sure your storefront content is up to date.
